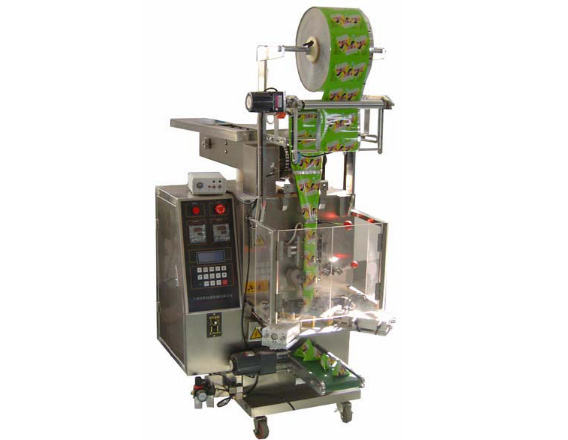

HTBP-40 automatic triangle-bag packing machine





This machine is applied to pack non-sticky granular materials with triangle-bag, such as washing powder, coffee, tea, sugar, peanut, oatmeal and inflating foodstuff Etc.



- All works of bag making, measuring, filling, sealing, cutting and counting can be done automatically.
- Japan Panasonic PLC.
- Japan YAMATAKE photo cell control system.
- The driving system is simple and reliable, and maintenance is easy.
- Main parts are made of stainless steel, meet the GMP standard.
- Automatic self support lubricating system, the machine can continuous more than 24 Hours.
- Applicable material should be composite film like: PET/PE, Paper/PE, PET/AL (PET-AL), PE, OPP/PE etc.


Technical Parameters



Bag size

W/40-70 mm, L/50-80 mm

Filling range

5 - 15 ml

Production capacity

20 - 60 bags/min


1.7 KW

Power supply

AC,220V/50HZ 1 phase or customization

Net weight

320 kg

Overall size

1000x750x1800 mm
