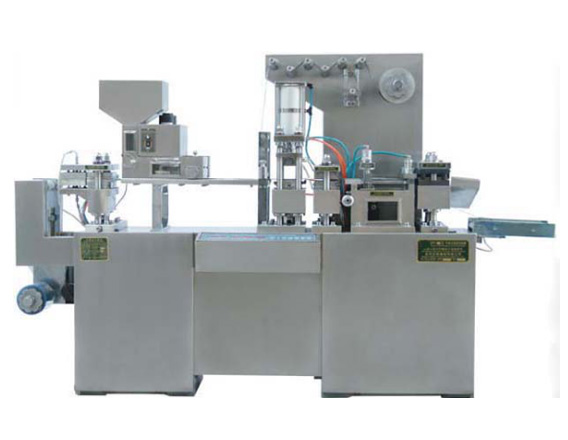

DPP-138A AL-Plastic Blister Packing Machine
Descriptions
This machine can continually and automatically complete the packing proceedings, is blister cap form-taking, medicine-feeding, heat sealing, printing lot no, and cutting into format. It Has advantage as compact structure, full function, gear wheel working, and accurate
Synchronization, stable cooperation, easy to replace the mould, low cost and needn't to equip Auxiliary unit. Turn on power and connect it with cooling water, you can produce in a large scale.
The machine is widely used in the vocation of medicine, foodstuff, electron, hardware for Alu/PVC blister packing of various nubby objects, such as capsule, tablet, pill and electronic Part.
Features
Variable frequency speed regulating, PC circuit control panel.
Adjustable travel adopts manipulator grip equipped with inching device, which has accurate Synchronization.
Travel-type feeder is suitable for feeding capsules and tablets.
Mould spout location is convenient for replacing mould.
Exquisite machine is suitable for small-scale production and laboratory.
Technical Parameters
Item/model | DPP-138A |
Production capacity | 2400 - 7200 plates/hour |
Blanking frequency | 20 - 40 times/min |
Blanking plate | 2 - 3 plates/hour |
Maximum forming area and depth | 140 x 100 x 18 mm |
Adjustable scope of travel | 30-100 mm |
Packing material | PVC: 150 x 0.25(0.15-0.5) mm PTP: 150 x 0.02 mm |
Power | 4 KW |
Power supply | AC, 220V/50-60 HZ, 1 phase |
Air compressor | ≥0.15 M3/min ( provide for oneself) |
Air pressure | 0.6 MPa |
Overall size | 2200(L) x 750(W) x 1200(H) mm |
Weight | 700 kg |
