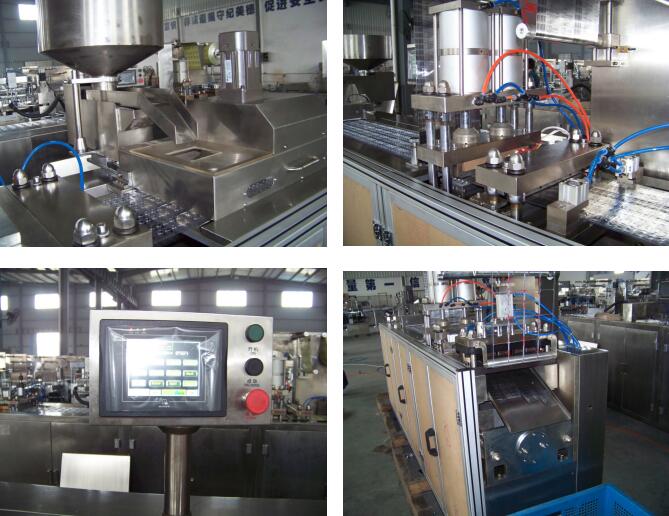

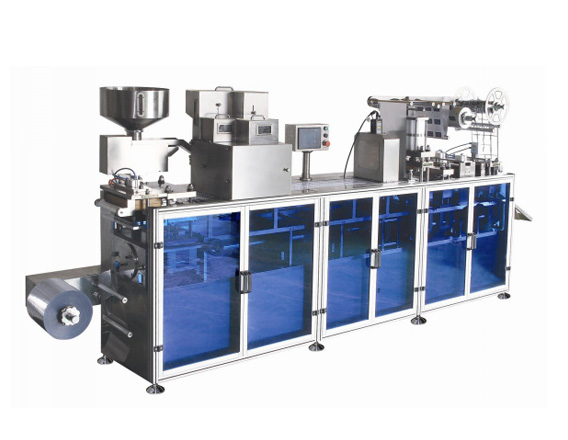

DPP-250DI AL-Plastic Blister Packing Machine
Descriptions
This machine can continually and automatically complete the packing proceedings, is blister cap form-taking, medicine-feeding, heat sealing, printing lot no, and cutting into format. It Has advantage as compact structure, full function, gear wheel working, and accurate Synchronization, stable cooperation, easy to replace the mould, low cost and needn't to equip Auxiliary unit. Turn on power and connect it with cooling water, you can produce in a large scale.
The machine is widely used in the vocation of medicine, foodstuff, electron, hardware for Alu/PVC blister packing of various nubby objects, such as capsule, tablet, pill and electronic Part.
Features
- Compact and simple structure
- Stainless steel construction
- Platen sealing
- Automatic rejection of blister
- Meet GMP standard
- CE certificate
- Procedure:
Forming film of reel support with automatic unwinding system
Paten heating system
Compressed air forming station
Automatic filling device
Cover foil reel support with automatic unwinding system cover foil unwinding system
Guide rails
Sealing station
Punching station
Waste winding unit
Technical Parameters
Item/model | DPP-250DI |
Capacity | 4800-12000 plates/hour |
Punching frequency | 20-50 times/min |
Maximum forming area and depth | 250 x 120 x 20 mm |
Adjustable scope of travel | 30 - 120 mm |
Packing material | PVC: 250 x 0.25(0.15-0.5) mm PTP aluminum foil: 250 x 0.02 mm |
Power | 5.7 KW |
Power supply | AC, 380V/50 HZ, 3 phase |
Air compressor | ≥0.22 M3/min ( provide for oneself) |
Air pressure | 0.5 - 0.7 MPa |
Overall size | 3800(L) x 800(W) x 1800(H) mm |
Weight | 1500 kg |
