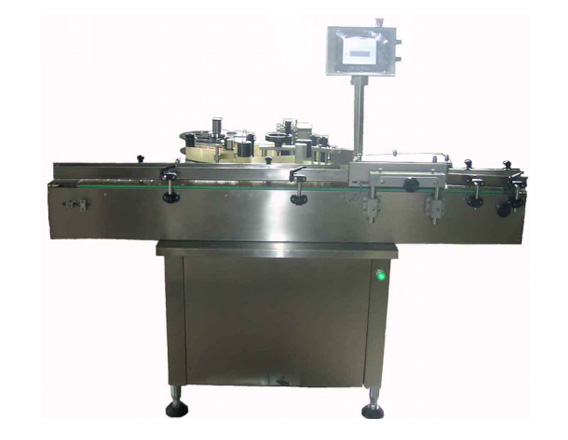

DLTB-A automatic labeling machine (with PLC & Touch Screen)
Descriptions
DLTB-A is economical, self contained, easy to operate, equipped with auto teach programming touch screen. Built in microchip storing different job setting makes fast and easy changeover.
This automatic labeling system is ideal for cylindrical container with diameter from 30 mm - 100 mm. (above size could be customized).
Features
- Labeling speed up to 250 bottles/min
- Touch screen control system with job memory
- Simple straight forward operator controls
- Full-set protecting device keep operation steady and reliable
- On-screen Trouble Shooting & Help Menu
- Stainless steel frame
- Open frame design, easy to adjust and change the label
- Variable speed with step motor
- Label count down (for precise run of set number of labels) to auto shut off
- Stamping coding device attached
Technical Parameters
Labeling speed | 100-250 bottles/min (according to the specification, shape of bottle and length of label) |
Bottles size | Φ30 - 100 mm, height (can be customized based on the requirements) |
Label size | Width: 90 mm, 140 mm or 190 mm Inside diameter of label coil: 76 mm Outside diameter of label coil: 300 mm |
Power | 300 W |
Power | AC,220V/50HZ 1 phase or customized |
Weight | 210 kg |
Overall size | 1600x700x1400 mm ( Length x Width x Height ) |
