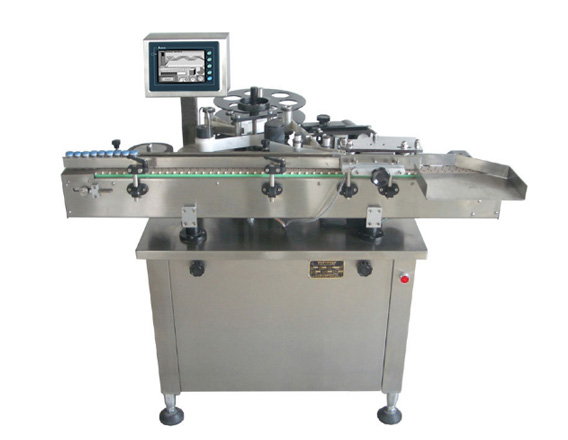

DLTB-C Automatic labeling machine
Descriptions
DLTB-C is economical, self contained, easy to operate, equipped with auto teach programming touch screen. Built in microchip storing different job setting makes fast and easy changeover.
This automatic labeling system is ideal for small container with diameter from 12 mm - 45 mm, such as vial or eye drop bottle.
Features
- Labeling speed up to 250 bottles/min
- Touch screen control system with job memory
- Simple straight forward operator controls
- Full-set protecting device keep operation steady and reliable
- On-screen Trouble Shooting & Help Menu
- Stainless steel frame
- Open frame design, easy to adjust and change the label
- Variable speed with step motor
- Label count down (for precise run of set number of labels) to auto shut off
- Stamping coding device attached
Technical Parameters
Labeling speed | 100-250 bottles/min (according to the specification, shape of bottle and length of label) |
Bottles size | Φ12 - 45 mm, height (can be customized based on the requirements) |
Power | 280W |
Power supply | AC,220V/50HZ 1 phase or customized |
Working direction | Left → Right (or Right → Left) |
Net weight | 160 kg |
Overall size | 1200x650x1200 mm ( Length x Width x Height ) |
