DWTB-C

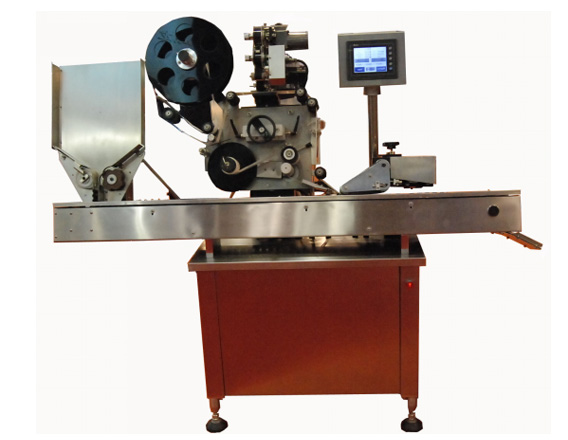

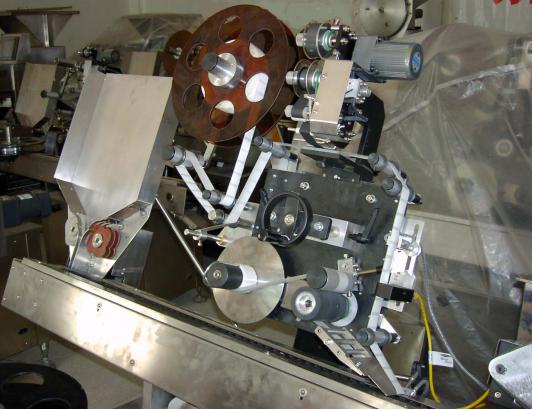

DWTB-C  Horizontal type automatic labeling machine






Descriptions

DWTB-C is economical, self contained, easy to operate, equipped with auto teach programming touch screen. Built in microchip storing different job setting makes fast and easy changeover.
This automatic labeling system is ideal for slim cylindrical container with diameter from 10 mm - 25 mm such as ampoule.



Features

- Labeling speed up to 250 bottles/min
- Touch screen control system with job memory
- Simple straight forward operator controls
- Full-set protecting device keep operation steady and reliable
- On-screen Trouble Shooting & Help Menu
- Stainless steel frame
- Open frame design, easy to adjust and change the label
- Variable speed with step motor
- Label count down (for precise run of set number of labels) to auto shut off
- Stamping coding device attached



Technical Parameters

Labeling speed

100-250 bottles/min (according to the specification, shape of bottle and length of label)

Bottles size

Φ10 - 25 mm, height (can be customized based on the requirements)

Power

260W

Power

AC, 220V/50HZ 1 phase or customized

Working direction

Left → Right

Net weight

185 kg

Overall size

1600x600x1250 mm ( Length x Width x Height )
