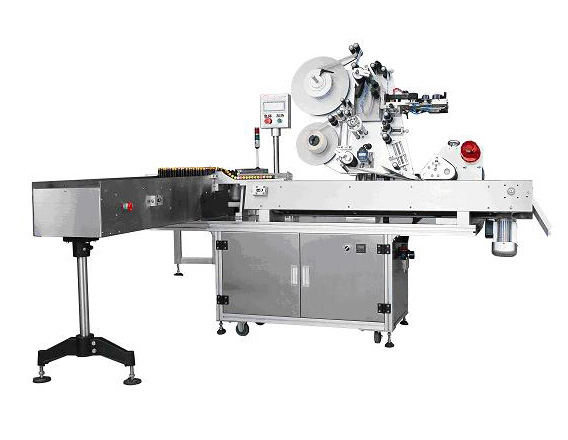

HWTB-400 High-speed labeling machine



HWTB-400 is economical, self contained, easy to operate, equipped with auto teach programming touch screen.
The machine adopts high speed labeling device and speed up to 400 bottles/min. Built in microchip storing different job setting makes fast and easy changeover.
This automatic labeling system is ideal for slim cylindrical container such as ampoule.



- Labeling speed up to 400 bottles/min
- Touch screen control system ( MITSUBISHI ) with job memory
- Simple straight forward operator controls
- Full-set protecting device keep operation steady and reliable
- On-screen Trouble Shooting & Help Menu
- Stainless steel frame
- Open frame design, easy to adjust and change the label
- Variable speed with servo motor( MITSUBISHI )
- Label count down (for precise run of set number of labels) to auto shut off
- Stamping coding device attached


Technical Parameters

Labeling speed

100-400 bottles/min (according to the specification, shape of bottle and length of label)

Bottles size

Can be customized based on the requirements

Label size

Length: 20mm - 90 mm     Width: 15mm - 80 mm


1.5 KW


AC, 220 V/50 HZ 1 phase or customized

Working direction

Left → Right (or Right → Left)

Net weight

600 kg

Overall size

1800x1500x1700 mm ( Length x Width x Height )
