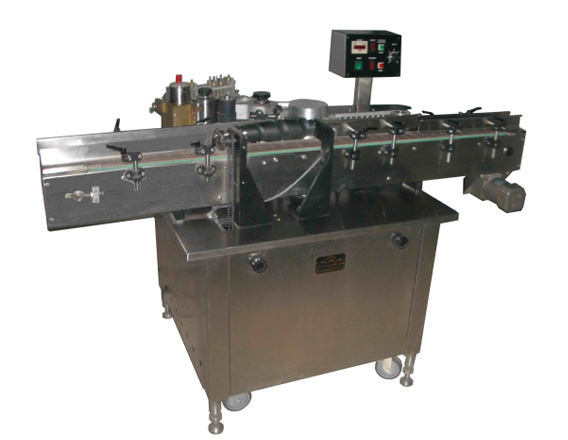

JHL-08 Glue labeling machine
Descriptions
JHL-08 is suitable for small cylindrical container such as glass, plastic, PET bottle with precut paper label.
The machine is economical and easy to operate. The performance is stable with a level off and good looking labeling result.
The control system adopts convert motor system, the in line conveying bottle, supplying glue and label automatically.
This automatic labeling system is ideal for food & beverage, medical industry etc.
Features
- Labeling speed up to 4800 bottles/hour
- Simple straight forward operator controls
- Stainless steel frame
- Open frame design, easy to adjust and change the label
- Variable speed with step motor
- Label count down (for precise run of set number of labels) to auto shut off
Technical Parameters
Labeling speed | 40-80 bottles/min (according to the specification, shape of bottle and length of label) |
Bottles size | Φ30 - 80 mm, height (can be customized ) |
Label size | Length: 40 mm - 90 mm Width: 20 mm - 50 mm |
Power | 750 W |
Power supply | AC,220V/50HZ 1 phase or customized |
Compressed air | 0.4 MPa |
Working direction | Left → Right (or Right → Left) |
Net weight | 200 kg |
Overall size | 1600x810x1200 mm ( Length x Width x Height ) |
