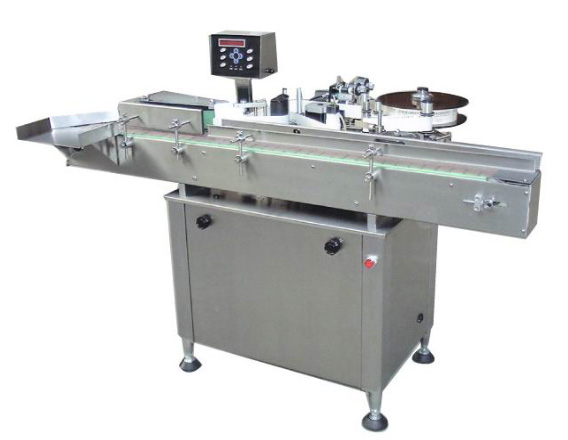

LTB-C  Vertical type automatic labeling machine



LTB-C is economical, self contained, easy to operate, equipped with LCD screen & PLC
control system. Built in microchip storing different job setting makes fast and easy changeover.
This automatic labeling system is ideal for small cylindrical container with diameter from 12 mm - 45 mm such as vials or eye drop bottles.



- Labeling speed up to 200 bottles/min
- LCD & PLC control system which is easy to control
- Simple straight forward operator controls
- On-screen trouble description which is easy to solve
- Stainless steel frame
- Open frame design, easy to adjust and change the label
- Variable speed with step motor
- Label count down (for precise run of set number of labels) to auto shut off
- Stamping coding device attached(coding direction could be switched)


Technical Parameters

Labeling speed

80 - 200 bottles/min (according to the specification, shape of bottle and length of label)

Bottles size

Φ12 - 45 mm, height (can be customized based on the requirements)


300 W

Power supply

AC, 220V/50HZ 1 phase or customized

Working direction

Left → Right (or Right → Left)

Net weight

150 kg

Overall size

1130x700x900 mm ( Length x Width x Height )
