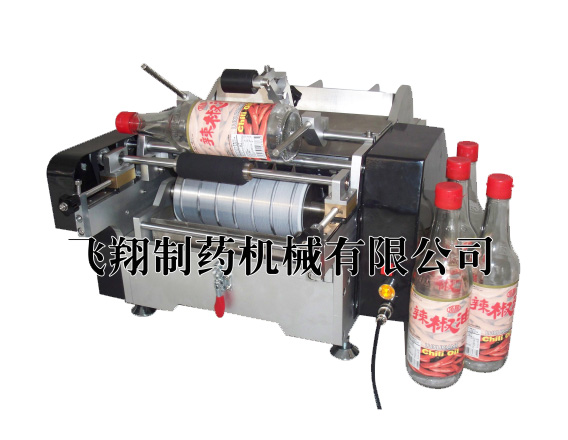

ML-861 Semiautomatic paste labeling machine


This machine is applied to label the label paper on various cylinder bottles and containers.
This machine is widely used in pharmacy, foodstuff, beverage, cosmetic and chemical etc industries. Such as can, beer and various glass bottles etc.
Applied label: label paper
Applied product: cylinder bottle, cylinder container.
Principle of work:
When the sensor detects the signal of product, A piece of label paper will be sent, and then coated paste and labeling can be completed on the products automatically. Then the label units return to in situ, wait next signal.
Operating progress:
put product automatic detect product send label paper + coated paste + labeling (automatically) remove the finished product



- Adopt original labeling technology to ensure the stability of labeling and positioning accuracy. No air bubble, no wrinkle, and raise the additional value of products.
- The frame and shell adopt stainless steel and high class aluminium alloy anodic treatment, the useful time is long.
- Adopt famous factory step motor to ensure high load and long period operation.
- With PLC, clutch and electric eye control, ensure the labeling accuracy, the operation is simple and convenient, the function is stable.
- Open frame, adjust the label paper of different sizes and change parts are all convenient.
- Disconnect-type design for the glue-plate, frictioning knife and glue-wheel, so the cleaning is very easy.
- The efficiency is about three to four times than manual operation, reducing labor cost, and management cost.
- With the functions of autocorrection and automatic detection when no label.
- With the functions of fault alarm and production counting.


Technical Parameters

Labeling  accuracy


Labeling speed

15-30 bottle/min

Applied bottle


Label size


Power supply

AC,220V/50HZ 1 phase or customization


48 kg

Overall size

580x420x290 mm (LxWxH)
